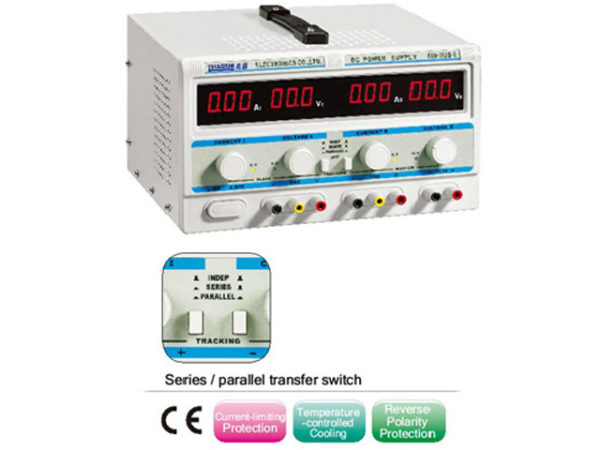

باور سبلاى موديل RXN305D

الوصف

Triple Output 0-30V & 0-5A DC Regulated

Introduction:

A power supply with Two adjustable 0-30V/0-5A outputs and One fixed 5V/3A output. The two 0-30V outputs can be combined in serie to 0-60V/0-5A or parallel to 0-30V/0-10A. With this device you can power your MCU, motors or other circuits current controlled with different voltages at the same time.

The big red display shows you precisely what voltage and current you have set, while the fast reacting current limitation protects your precious circuit against being destroyed.

Features:

• Two adjustable 0-30V / 0-5A outputs and one fixed 5V/3A output
• Can be combined to 0-60V/0-5A (seriel) or to 0-30V/0-10A (parallel)
• Current-limiting protection
• Reverse polarity protection
• Temperature controlled cooling
• Precise voltage and current setting
• Precise current measurement

Specification:

• Input voltage : 220V AC ±10% 50Hz
• Voltage output : Two adjustable 0 – 30V Outputs + Single FIxed 5V Output
• Current output : 0 – 5A x 2
• Operating temperature : -10C – 40C
• Constant voltage state :
  • Voltage stability : ≤0.01% + 2mV
  • Load stability : ≤0.01% + 2mV
  • Resume time : ≤100us
  • Ripple noise : ≤1mVRMS (RMS)
  • Temperture coefficient : ≤200PPM/C
• Constant current state :
  • Current stability : ≤0.1% + 3mV
  • Load stability : ≤0.2% + 3mV
  • Ripple noise : ≤2mARMS
  • Voltage display accuracy : Three light-emitting diode : ±1%±1 unit
• Weight : 9.72kg
• Dimensions mm : 343×360×170

Package include:

• RXN305D-II Main unit
• Power Cord (220 Vac)
• User Manual
